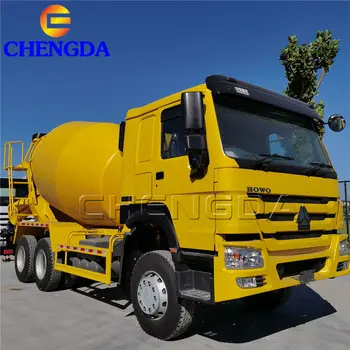

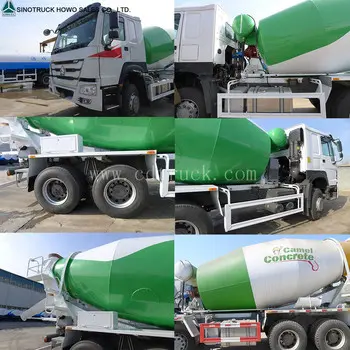

Cement Mixer Truck

The whole truck is convenient and stable with strong intensity. Sperical purpose chassis is specially designed for rural market, even narrow country road can be easily handled;Concrete mixing tank with superior performance, optimized design of concrete mixing tank, improve loading ability, mixing on average without separation;The blade has unique wear-resisting protection structure, improving blade service lift 80%;We equip our concrete transit mixer with SUNNY, INTERPUMP hydraulic motor and Pump to make sure it works stable and longer service life.


  Contact Now
Product Details

Advantage

1. The use of iron and metal manufacturing of specific wear-resistant plate mixing drum and blade.

2. Mixing drum blade production process using special mold stamping. 3. Drum and blade welding adopts massive rotary tooling, excessive precision. 4. The hydraulic gadget adopts imported components, compact shape and superb performance.

5. The whole car styling chic, beautiful, compact and reasonable structure. 6. The operating system is flexible and convenient, the realization of the left and right, feed operation three in one.

Cement Mixer TruckCement Mixer Truck

Details:

1.Hydraulic system:  It structure is simple and reliable.

2.Water supply system: It supplies water by pressure, which saves the labor intensity and reduces the car weight.

3.Mixng drum: It is pear fashioned and has twin helical blades, which improves the concrete quality; The putting in perspective of the drumis small, which reduces the car middle of gravity and is conducive to the easy discharge of the concrete.4.Control device: It charging hopper and discharging chute can rotate 180 degree in the horizontal direction to adapt to different position

Cement Mixer Truck

Specification:

Truck Brand

SINOTRUK –HOWO

Driving Type

LHD/RHD

Dimension(Lx W xH)(unloaded)(mm)

9800x2496x3800

Approaching angle/Departure angle(°)

16/18

Overhang(front/rear) (mm)

1500/2975

Wheel base (mm)

3975+1350

Max speed(km/h)

75

Curb weight(kg)

14180

loading weight(kg)

25000

Fuel tanker capacity(L)

400L

Clutch

Single-plate dry clutch Φ430mm

Engine Model

(Steyr technology, made in China)

Fuel type

Diesel

Horse Power, max(kw/rpm)

375HP

Emission

EURO III

Model

WD615.96. water-cooled,four strokes,6 cylinders in line with water cooling,directly injection

Transmission

Model

HW19710,10 forwards and 2 reverse

Steering system

Model

ZF8118 hydraulic steering with power assistance

Power take off

Full Power PTO

Front axle

HF9  1x9000 KGS

Rear axle

HC16  2x16000 KGS

Color

Optional

Tire

12.00R20  Radial tires 10pieces

Cab

HW76 cab, one sleeper with air-condition

Frame

8+8/300 mm double strengthen frame

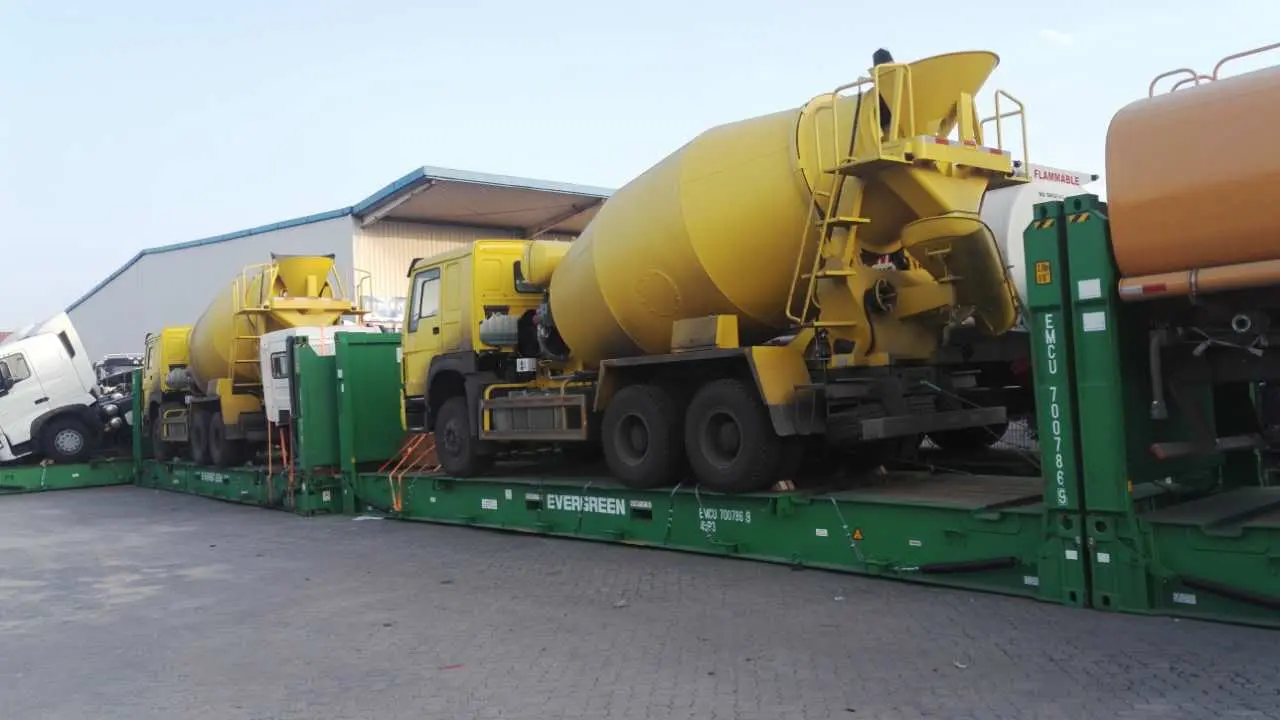

Shipping and packing:

By bulk: The most inexpensive way,put the truck on the deck of the ship;

By roro: The most protecting way,put the truck in the ship cabin;

By flat rack container: one flat rack container can transport two tractor truck. According to the type and volume of the goods, professional packaging and shipping methods will help customers save freight to thegreatest extent.

Cement Mixer Truck

Feedback:

Every year, many customers go to our manufacturing unit and are very comfortable with our products, which has been unanimously identified by customers. The first-rate motivate for us used to be that our merchandise you gave us full satisfaction.

Used Concrete Mixer Truck

FAQ:

1. Who are we?

We are a company integrating industry and trade, with a complete production line, and can also provide you with qualified truck head parts.We are based in Shandong, China, start from 2018,sell to Africa(80.00%),Southeast Asia(15.00%),South America(5.00%).

2. How can we guarantee quality?

Have a strong professional design team and manufacturing engineers,

Prompt delivery, fast delivery, maximize the protection of your interests

3.What can you buy from us?

Semi TrailerFlatbed Trailer, Low Bed TrailerDump TruckFuel Tank Trailer, Flat Bed Trailer, Full Trailer, Concrete Mixer Truck

4. Why ought to you purchase from us now not from different suppliers?

We will carefully check and test each truck head.

Professional sales staff will introduce the related problems of truck head for you, and recommend the most suitable truck for you.

5. What services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW;

Accepted Payment Currency:USD,CNY;

AcceptedPayment Type: T/T,L/C,Western Union,Cash;

Language Spoken: English,Chinese,Spanish,French
