4 Axles Detachable Gooseneck Lowbed Trailer

12500 USD

Different Parameters, Different Price. Price Reference Only.

4Axles Lowbed trailer is a heavy-duty vehicle that is to transport heavy duty machine. Chengda 4 Axles Lowbed trailers are used in different industry.

Brand: Chengda

Model Number: SCD9401TDP

Product Name: Lowbed Semi Trailer

Contact Now

Product Details

Product Description:

The main beam of the lowbed trailer is made of Q345 steel, which has very good mechanical properties, strong toughness, high compressive and tensile strength, and good welding performance. The main beam made of Q345 has strong bearing capacity, long service life, safety and reliability.

The design of the lowbed trailer frame combines the world's most advanced design concepts with our many years of manufacturing experience.

The frame is the main component used to support the load, install traction pins, suspension, support and other devices. The structure adopts a concave beam frame, and the main beam adopts an H-shaped design, which increases the bearing capacity and improves the stability of the whole vehicle.

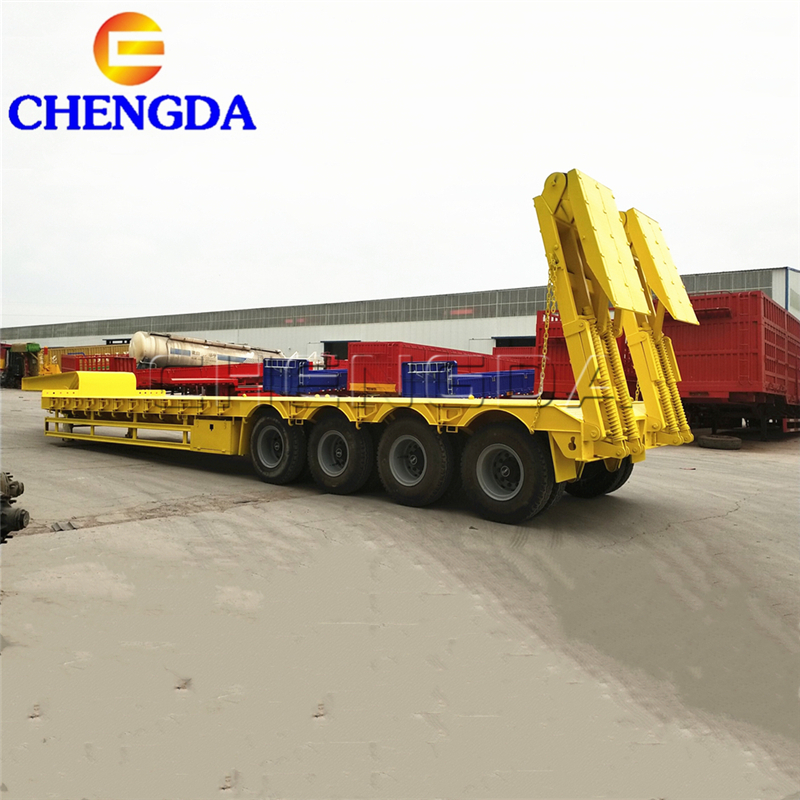

4 Axles Lowbed Trailer

We provide custom service. The brands and types of axles, tires, suspension systems and outriggers of the lowbed trailer can be determined by the customer, and different brands and types have different quotations.

4 Axles Detachable Gooseneck Lowbed Trailer Specification

Type	4 Axle Lowbed Semi Trailer
Loading capacity	80ton
Dimensions	13000x3000x1600mm
Main Beam	Height:500mm,Upper plate:18mm, Middle plate:12mm, Bottom plate:20mm, Material:Q345B steel
Platform	3mm diamond plate
Axle	4axles 13T/16T ,FUWA/ BPW/ ZY Brand
Gooseneck	Optional
King pin	JOST brand or Chinese brand 2.0 or 3.5 inch
Landing gear	JOST brand or Chinese brand 28tons
Suspension	Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand)
Steel Spring	90(W)mmx13(Thickness)mmx10 layers
Tire	1.00R20 or 12R22.5 16 pieces

Lowbed trailer details

Packing & Delivery

We mainly provide three ways of shipment to transport your orders.

--Ro-ro Shipment

--Bulk Shipment

--Container Shipment

Lowbed Shipment

Feedback

Flatbed trailer feedback

FAQ:

1. How do you make the shipment?

We will transport the trailers by bulk, ro-ro, or container, and we have possessed long cooperation with ship agencies, they will provide you the lowest shipping fee.

2. Does your company has your own factory?

Yes, we do have our own factories in China.

3. What's your MOQ?

One unit trailer or truck.

4. What can you buy from us?

Truck Trailer,Truck,Trailer Parts,Truck Parts
